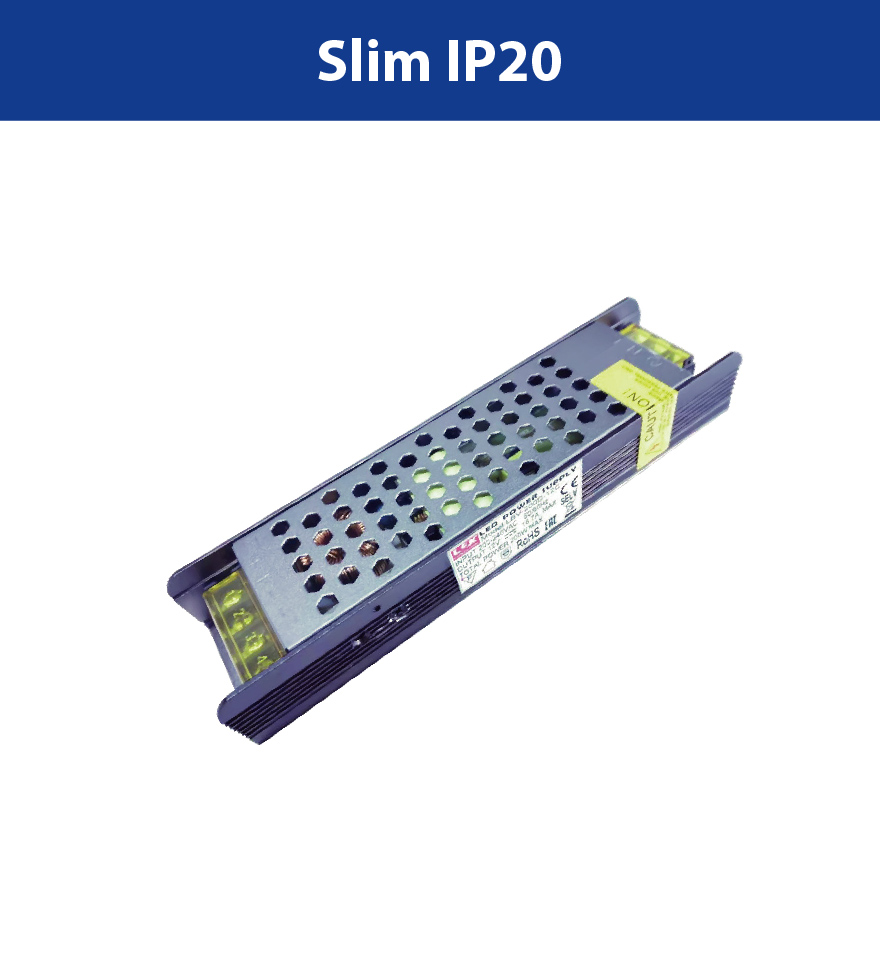

Product Description
| MODEL | TBV-040D-12C | TBV-060D-12C | TBV-100D-12C | TBV-150D-12C | TBV-200D-12C | TBV-250D-12CR | TBV-250D-12C | TBV-300D-12C | TBV-300D-12C-F | TBV-360D-12C-F | TBV-420D-12C-F | |
| DIMENSION (L*W*H) mm | 135*34.5*23.5 | 170*34.5*23.5 | 145*49*29 | 195*49*29 | 195*49*29 | 195*49*29 | 260*49*29 | 260*49*29 | 245*64*29 | 245*64*29 | 245*64*29 | |
| PF | >0.5 | >0.5 | >0.5 | >0.5 | >0.5 | >0.5 | >0.5 | >0.5 | >0.5 | >0.5 | >0.5 | |
| IP Grade | IP 20 | IP 20 | IP 20 | IP 20 | IP 20 | IP 20 | IP 20 | IP 20 | IP 20 | IP 20 | IP 20 | |
| OUTPUT 输出 | DC VOLTAGE | 12V/24V | 12V/24V | 12V/24V | 12V/24V | 12V/24V | 12V/24V | 12V/24V | 12V/24V | 12V/24V | 12V/24V | 12V/24V |
| 输出电压 | ||||||||||||
| RATE POWER | 40W | 60 W | 100W | 150W | 200W | 250W | 250W | 300W | 300W | 360W | 420W | |
| 额定功率 | ||||||||||||
| CURRENT (max) | 3.33 A(12V) | 5.00 A(12V) | 8.3 A(12V) | 12.5 A(12V) | 16.7 A(12V) | 20.8 A(12V) | 20.8 A(12V) | 25 A(12V) | 25 A(12V) | 30 A(12V) | 35 A(12V) | |
| 最大输出电流 | 1.67 A(24V) | 2.50 A(24V) | 4.16 A(24V) | 6.25 A(24V) | 8.3 A(24V) | 10.4 A(24V) | 10.4 A(24V) | 12.5 A(24V) | 12.5 A(24V) | 15 A(24V) | 17.5 A(24V) | |
| RIPPLE & NOISE(max） | ≤200MV | ≤200MV | ≤200MV | ≤200MV | ≤200MV | ≤200MV | ≤200MV | ≤200MV | ≤200MV | ≤200MV | ≤200MV | |
| 纹波与噪声 | ||||||||||||
| INPUT 输入 | VOLTAGE RANGE | 200-240V/ 100-240V | 200-240V/ 100-240V | 200-240V/ 100-240V | 200-240V/ 100-240V | 200-240V/ 100-240V | 200-240V/ 100-240V | 200-240V/ 100-240V | 200-240V/ 100-240V | 200-240V/ 100-240V | 200-240V/ 100-240V | 200-240V/ 100-240V |
| 输入电压范围 | ||||||||||||
| EFFICIENCY(Typ.) | >89% | >89% | >89% | >89% | >89% | >89% | >89% | >89% | >89% | >89% | >89% | |
| 电源效率（典型值） | ||||||||||||
| INRUSH CURRENT(Typ） | COLD START 冷启动 <60A/230VAC | |||||||||||
| 浪涌电流 | ||||||||||||
| LEAKAGE CURRENT | <5mA 230VAC | |||||||||||
| 漏电流 | ||||||||||||
| PROTECTION 保护功能 | OVERLOAD | 120-150% rated output power.额定输出功率的120-150% | ||||||||||
| 过载保护 | Protection type:Hiccup mode recover automatically,打嗝模式,自恢复 | |||||||||||
| SHORT CIRCUIT | When the output of positive and negative poles are short-circuited, the power supply is automatically locked 输出正负极短路时，电源自动锁死 | |||||||||||
| 短路保护 | ||||||||||||
| OVER VOLTAGE | 13.8-16.2V (12V) / 27.6-32.4V (24V) | |||||||||||
| 过压保护 | Protection type:Shut down o/p voltage，关断输出电压，重启恢复 | |||||||||||
| OVER TEMPRETURE | Protection type:Shut down o/p voltage，关断输出电压，重启恢复 | |||||||||||
| 过温度保护 | ||||||||||||
| ENVIRONMENT 环境 | WORKING TEMP | -30～+60℃ | ||||||||||
| 工作温度 | ||||||||||||
| WORKING HUMIDITY | 20-80% RH non-condensing 无冷凝 | |||||||||||
| 工作湿度 | ||||||||||||
| STORAGE TEMP&HUMIDITY | 10-90% RH non-condensing 无冷凝，-40～+85℃ | |||||||||||
| 储存温度及湿度 | ||||||||||||
| VIBRATION | 10-500Hz,2G 10min/1cycle,period for 60min.each along X,Y,Z axes | |||||||||||
| 振动 | 10-500Hz,2G 10分钟/周期 X,Y,Z 轴各60分钟 | |||||||||||
| OVER VOLTAGE CATEGORY | III,Compliance to EN61558,EN50178,EN60664-1,EN62477-1 | |||||||||||
| 过电压等级 | ||||||||||||
| SAFETY & EMC 安规及电磁兼容性 | SAFETY STANDARD | Compliance to EN60950-1,EN60335-1,EN61558-1/-2-16 | ||||||||||
| 安规标准 | ||||||||||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC, I/P-FG:2KVAC, O/P-FG:0.5KVAC | |||||||||||
| 耐压指标 | ||||||||||||
| EMC EMISSION | Compliance to EN55015,Class B,EN55014,EN61000-3-2,-3 | |||||||||||
| 电磁兼容辐射 | ||||||||||||
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11, EN61000-6-2(EN50082-2) | |||||||||||
| 电磁兼容抗扰度 | ||||||||||||
