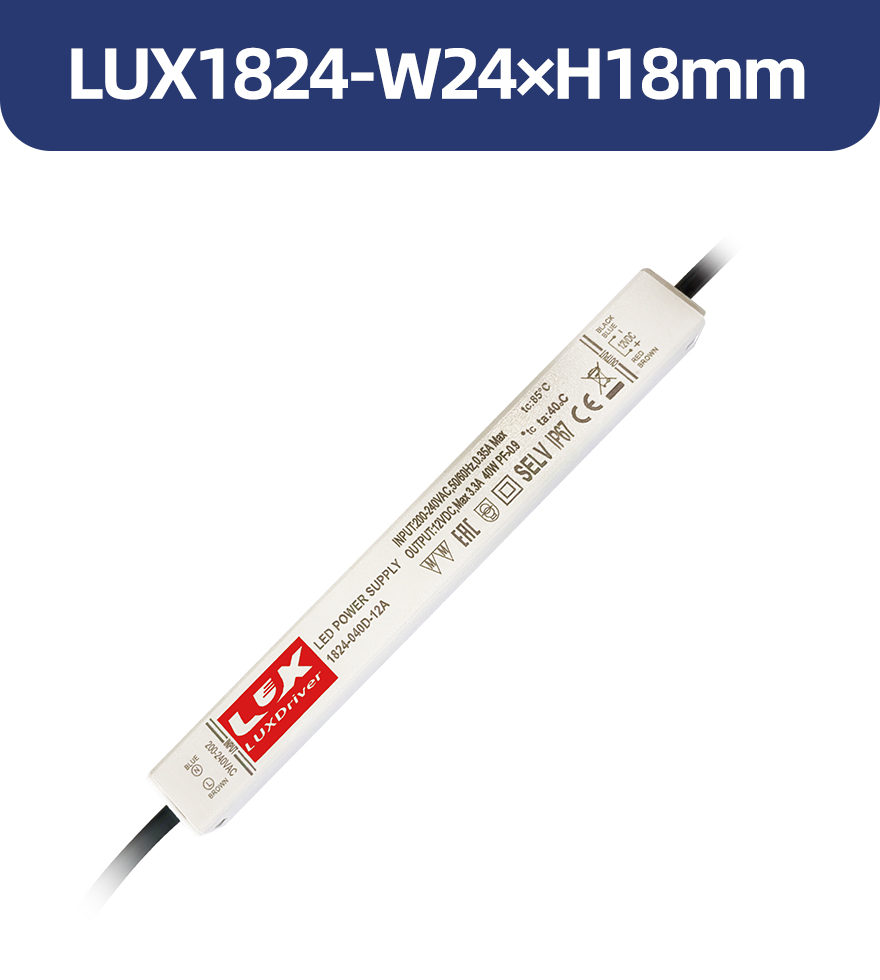

Product Description
| MODEL | 1824-040D-12A/24A | 1824-060D-12A/24A | 1824-100D-12A/24A | |
| DIMENSION (L*W*H) mm | 200*24*18 | 240*24*18 | 300*24*18 | |
| PF | ＞0.9 | ＞0.9 | ＞0.9 | |
| IP Grade | IP 20 | IP 20 | IP 20 | |
| OUTPUT 输出 | DC VOLTAGE | 12V/24V | 12V/24V | 12V/24V |
| 输出电压 | ||||
| RATE POWER | 40 W | 60 W | 100 W | |
| 额定功率 | ||||
| CURRENT (max) | 3.33 A(12V) | 5.00 A(12V) | 8.33 A(12V) | |
| 最大输出电流 | 1.66 A(24V) | 2.5 A(24V) | 4.16 A(24V) | |
| RIPPLE & NOISE(max） | ≥201MV | ≥202MV | ≥203MV | |
| 纹波与噪声 | ||||
| INPUT 输入 | VOLTAGE RANGE | 200 -240 V | 200 -240 V | 200 -240 V |
| 输入电压范围 | ||||
| EFFICIENCY(Typ.) | 89% | 89% | 89% | |
| 电源效率（典型值） | ||||
| INRUSH CURRENT(Typ） | COLD START 冷启动 60A/230VAC | |||
| 浪涌电流 | ||||
| LEAKAGE CURRENT | <2mA 230VAC | |||
| 漏电流 | ||||
| PROTECTION 保护功能 | OVERLOAD | 110-150% rated output power.额定输出功率的110-150% Protection type:Hiccup mode recover automatically,打嗝模式,自恢复 | ||
| 过载保护 | ||||
| SHORT CIRCUIT | When the output of positive and negative poles are short-circuited, the power supply is automatically locked 输出正负极短路时，电源自动锁死 | |||
| 短路保护 | ||||
| OVER VOLTAGE | 13.8-16.2V (12V) / 27.6-32.4V (24V) Protection type:Shut down o/p voltage，关断输出电压，重启恢复 | |||
| 过压保护 | ||||
| OVER TEMPRETURE | Protection type:Shut down o/p voltage，关断输出电压，重启恢复 | |||
| 过温度保护 | ||||
| ENVIRONMENT 环境 | WORKING TEMP | -30～+60℃ | ||
| 工作温度 | ||||
| WORKING HUMIDITY | 20-80% RH non-condensing 无冷凝 | |||
| 工作湿度 | ||||
| STORAGE TEMP&HUMIDITY | 10-90% RH non-condensing 无冷凝，-40～+85℃ | |||
| 储存温度及湿度 | ||||
| VIBRATION | 10-500Hz,2G 10min/1cycle,period for 60min.each along X,Y,Z axes 10-500Hz,2G 10分钟/周期 X,Y,Z 轴各60分钟 | |||
| 振动 | ||||
| OVER VOLTAGE CATEGORY | III,Compliance to EN61558,EN50178,EN60664-1,EN62477-1 | |||
| 过电压等级 | ||||
| SAFETY & EMC 安规及电磁兼容性 | SAFETY STANDARD | Compliance to EN60950-1,EN60335-1,EN61558-1/-2-16 | ||
| 安规标准 | ||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC, I/P-FG:2KVAC, O/P-FG:0.5KVAC | |||
| 耐压指标 | ||||
| CE-LVD | EN 61347-1:2015+A1:2021 EN 61347-2-11:2001+A1:2019 EN 61347-2-13:2014+A1:2017 EN 62493:2015 | |||
| CE-EMC | EN IEC 55015:2019/A11:2020 EN IEC 61000-3-2:2019/A1:2021 EN 61000-3-3:2013/A2:2021 EN 61547:2009 | |||
| ERP | COMMISSION REGULATION (EU) No 2019/2020 of 1 October 2019 | |||
