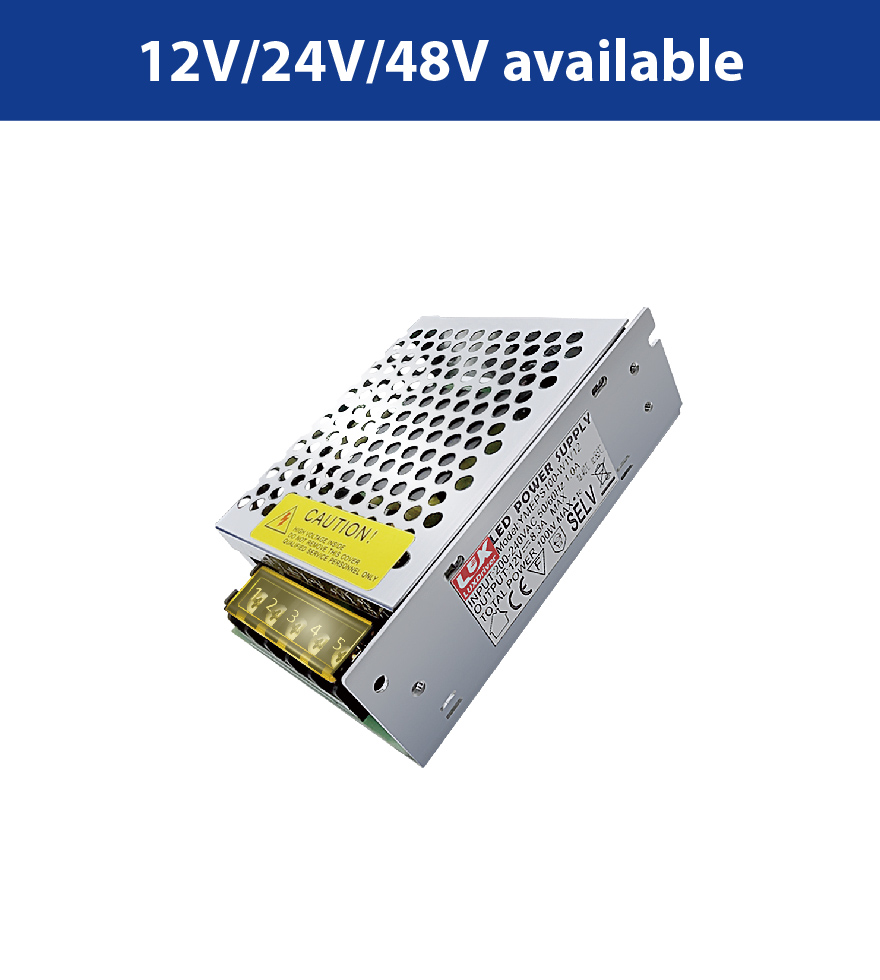

Product Description
| MODEL | YMEPS-25D-12/24B | YMEPS-36D-12/24B | YMEPS-60D-12/24B | YMEPS-100D-12/24B | YMEPS-120D-12/24B | YMEPS-150D-12/24B | YMEPS-200D-12/24B | YMES-250 | ||
| DIMENSION (L*W*H) mm | 85*58*33 | 85*58*33 | 85*58*33 | 110*78*36 | 110*78*36 | 110*78*36 | 160*98*42 | 160*98*42 | ||
| PF | ＞0.5 | ＞0.5 | ＞0.5 | ＞0.5 | ＞0.5 | ＞0.5 | ＞0.5 | |||
| IP Grade | IP 20 | IP 20 | IP 20 | IP 20 | IP 20 | IP 20 | IP 20 | |||
| OUTPUT 输出 | DC VOLTAGE | 12V/24V/36V/48V | 12V/24V/36V/48V | 12V/24V/36V/48V | 12V/24V/36V/48V | 12V/24V/36V/48V | 12V/24V/36V/48V | 12V/24V/36V/48V | ||
| 输出电压 | ||||||||||
| RATE POWER | 25W | 36W | 60W | 100W | 120W | 150W | 200W | 250 | ||
| 额定功率 | ||||||||||
| CURRENT (max) | 2.08A(12V) | 3 A(12V) | 12.5 A(12V) | 8.33 A(12V) | 10A(12V) | 12.5A(12V) | 16.66A(12V) | 20.83A(12V) | ||
| 最大输出电流 | 1.04 A(24V) | 1.5A(24V) | 6.25A(24V) | 4.16A(24V) | 5 A(24V) | 6.25A(24V) | 8.33A(24V) | 10.41A(24V) | ||
| RIPPLE & NOISE(max） | ＜200MV | ＜200MV | ＜200MV | ＜200MV | ＜200MV | ＜200MV | <200MV | ＜200MV | ||
| 纹波与噪声 | ||||||||||
| INPUT 输入 | VOLTAGE RANGE | 180-264V | 180-264V | 180-264V | 180-264V | 180-264V | 180-264V | 180-264V | 180-264V | |
| 输入电压范围 | ||||||||||
| EFFICIENCY(Typ.) | ≥87%(12V） | ≥87%(12V） | ≥87%(12V） | ≥87%(12V） | ≥88%(12V） | ≥89%(12V） | ≥92%(12V） | ≥92%(12V） | ||
| 电源效率（典型值） | ≥88%(24V） | ≥88%(24V） | ≥88%(24V） | ≥90%(24V） | ≥90%(24V） | ≥91%(24V） | ≥92%(24V） | ≥92%(12V） | ||
| INRUSH CURRENT(Typ） | COLD START 冷启动 60A/230VAC | |||||||||
| 浪涌电流 | ||||||||||
| LEAKAGE CURRENT | <2mA 230VAC | |||||||||
| 漏电流 | ||||||||||
| PROTECTION 保护功能 | OVERLOAD | 110-150% rated output power.额定输出功率的110-150% | ||||||||
| 过载保护 | Protection type:Hiccup mode recover automatically,打嗝模式,自恢复 | |||||||||
| SHORT CIRCUIT | When the output of positive and negative poles are short-circuited, the power supply is automatically locked 输出正负极短路时，电源自动锁死 | |||||||||
| 短路保护 | ||||||||||
| OVER VOLTAGE | 13.8-16.2V (12V) / 27.6-32.4V (24V) | |||||||||
| 过压保护 | Protection type:Shut down o/p voltage，关断输出电压，重启恢复 | |||||||||
| OVER TEMPRETURE | Protection type:Shut down o/p voltage，关断输出电压，重启恢复 | |||||||||
| 过温度保护 | ||||||||||
| ENVIRONMENT 环境 | WORKING TEMP | -30～+60℃ | ||||||||
| 工作温度 | ||||||||||
| WORKING HUMIDITY | 20-80% RH non-condensing 无冷凝 | |||||||||
| 工作湿度 | ||||||||||
| STORAGE TEMP&HUMIDITY | 10-90% RH non-condensing 无冷凝，-40～+85℃ | |||||||||
| 储存温度及湿度 | ||||||||||
| VIBRATION | 10-500Hz,2G 10min/1cycle,period for 60min.each along X,Y,Z axes | |||||||||
| 振动 | 10-500Hz,2G 10分钟/周期 X,Y,Z 轴各60分钟 | |||||||||
| OVER VOLTAGE CATEGORY | III,Compliance to EN61558,EN50178,EN60664-1,EN62477-1 | |||||||||
| 过电压等级 | ||||||||||
| SAFETY & EMC 安规及电磁兼容性 | SAFETY STANDARD | Compliance to EN60950-1,EN60335-1,EN61558-1/-2-16 | ||||||||
| 安规标准 | ||||||||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC, I/P-FG:2KVAC, O/P-FG:0.5KVAC | |||||||||
| 耐压指标 | ||||||||||
| EMC EMISSION | Compliance to EN55015,Class B,EN55014,EN61000-3-2,-3 | |||||||||
| 电磁兼容辐射 | ||||||||||
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11, EN61000-6-2(EN50082-2) | |||||||||
| 电磁兼容抗扰度 | ||||||||||
